Spring Boot - JPA 연관관계 설정

MySql Workbench 의 Database 탭의 Reverse Engineer 를 통해 다음과 같이 ERD 생성.





ERD를 완성했으면 Database 탭의 Foward Engineer 를 통해 작업 완료.

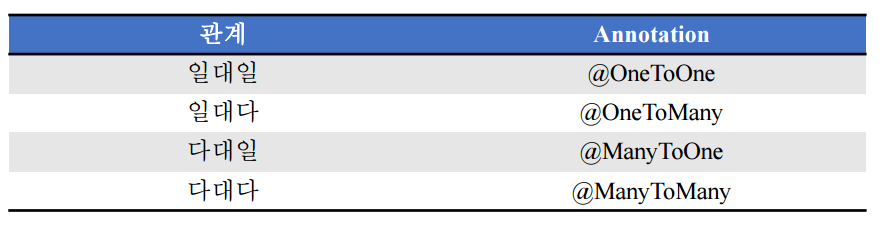

JPA 연관관계 설정을 위해 관계 어노테이션 및 쿼리메소드를 사용하였다.





User.java

package com.example.study.model.entity;

import lombok.AllArgsConstructor;
import lombok.Data;
import lombok.NoArgsConstructor;

import javax.persistence.*;
import java.time.LocalDateTime;
import java.util.List;

@Data
@AllArgsConstructor
@NoArgsConstructor
@Entity // ==table
public class User {
    @Id
    @GeneratedValue(strategy = GenerationType.IDENTITY)
    private Long id;
    private String account;
    private String email;
    private String phoneNumber;
    private LocalDateTime createdAt;
    private String createdBy;
    private LocalDateTime updatedAt;
    private String updatedBy;

    // 1 : N
    @OneToMany(fetch = FetchType.LAZY , mappedBy = "user")
    private List<OrderDetail> orderDetailList;
}



Item.java

package com.example.study.model.entity;

import lombok.AllArgsConstructor;
import lombok.Data;
import lombok.NoArgsConstructor;

import javax.persistence.*;
import java.util.List;

@Data
@AllArgsConstructor
@NoArgsConstructor
@Entity
public class Item {
    @Id
    @GeneratedValue(strategy = GenerationType.IDENTITY)
    private Long id;
    private String name;
    private Integer price;
    private String content;

    // 1 : N
    // LAZY = 지연로딩, EAGER = 즉시로딩

    // LAZY = SELECT * FROM item WHERE id = ?
    // EAGER = JOIN문 사용, 1:1 에서만 추천
    @OneToMany(fetch = FetchType.LAZY , mappedBy = "item")
    private List<OrderDetail> orderDetailList;
}



OrderDetail.java

package com.example.study.model.entity;

import lombok.AllArgsConstructor;
import lombok.Data;
import lombok.NoArgsConstructor;
import lombok.ToString;

import javax.persistence.*;
import java.time.LocalDateTime;

@Data
@AllArgsConstructor
@NoArgsConstructor
@Entity // order_detail
@ToString(exclude = {"user", "item"})   // 2개의 entity 참조를 해서 상호 참조 방지 (오버플로우 발생)
public class OrderDetail {
    @Id
    @GeneratedValue(strategy = GenerationType.IDENTITY)
    private Long id;

    private LocalDateTime orderAt;

    // N : 1
    @ManyToOne
    private User user;  // user_id

    // N : 1
    @ManyToOne
    private Item item;
}



UserRepository.java (인터페이스)

package com.example.study.repository;
import com.example.study.model.entity.User;
import org.springframework.data.jpa.repository.JpaRepository;
import org.springframework.stereotype.Repository;

import java.util.Optional;

@Repository
public interface UserRepository extends JpaRepository<User, Long> {

    // select * from user where account = ? << test03, test04
    Optional<User> findByAccount(String account);	// 쿼리메소드 사용


    Optional<User> findByEmail(String email); // 쿼리메소드 사용

    // select * from user where account = ? and email = ?
    Optional<User> findByAccountAndEmail(String account, String email);	// 쿼리메소드 사용
}



ItemRepository.java (인터페이스)

package com.example.study.repository;

import com.example.study.model.entity.Item;
import org.springframework.data.jpa.repository.JpaRepository;
import org.springframework.stereotype.Repository;

@Repository
public interface ItemRepository extends JpaRepository<Item, Long> {

}



OrderDetailRepository.java (인터페이스)

package com.example.study.repository;

import com.example.study.model.entity.OrderDetail;
import org.springframework.data.jpa.repository.JpaRepository;
import org.springframework.stereotype.Repository;

@Repository
public interface OrderDetailRepository extends JpaRepository<OrderDetail, Long> {

}



UserRepositoryTest.java

package com.example.study.repository;

import com.example.study.StudyApplicationTests;
import com.example.study.model.entity.Item;
import com.example.study.model.entity.User;
import org.junit.Assert;
import org.junit.Test;
import org.springframework.beans.factory.annotation.Autowired;

import javax.transaction.Transactional;
import java.time.LocalDateTime;
import java.util.Optional;

public class UserRepositoryTest extends StudyApplicationTests {

    // Dependency Injection (DI)
    @Autowired
    private UserRepository userRepository;

    @Test
    public void create(){
        // String sql = insert into user (%s, %s, %d) value (account, email, age);
        User user = new User();
        user.setAccount("TestUser03");
        user.setEmail("TestUser03@gmail.com");
        user.setPhoneNumber("010-3333-3333");
        user.setCreatedAt(LocalDateTime.now());
        user.setCreatedBy("TestUser3");

        User newUser = userRepository.save(user);
        System.out.println("newUser : " + newUser);
    }


    @Test
    @Transactional
    public void read(){

        // select * from user where id = ?

        Optional<User> user = userRepository.findByAccount("TestUser03");

        user.ifPresent(selectUser ->{
            selectUser.getOrderDetailList().stream().forEach(detail->{
                Item item = detail.getItem();
                System.out.println(item);
            });
        });
    }

    @Test
    public void update(){
        Optional<User> user = userRepository.findById(2L);

        user.ifPresent(selectUser ->{
            selectUser.setAccount("PPPP");
            selectUser.setUpdatedAt(LocalDateTime.now());
            selectUser.setUpdatedBy("update method()");

            userRepository.save(selectUser);
        });
    }

    @Test
    @Transactional  // 실제로 DB에서 삭제되지 않게함, 단지 Test 이기 때문
    public void delete(){
        Optional<User> user = userRepository.findById(2L);

        Assert.assertTrue(user.isPresent());    // 반드시 위의 값이 존재해야함, true

        user.ifPresent(selectUser->{
            userRepository.delete(selectUser);
        });

        Optional<User> deleteUser = userRepository.findById(2L);

        if(deleteUser.isPresent()){
            System.out.println("데이터 존재 : " + deleteUser.get());
        }else{
            System.out.println("데이터 삭제 되었음");
        }

        Assert.assertFalse(deleteUser.isPresent()); // 위의 값이 존재하면 안됨, false
    }
}



ItemRepositoryTest.java

package com.example.study.repository;

import com.example.study.StudyApplicationTests;
import com.example.study.model.entity.Item;
import org.junit.Assert;
import org.junit.Test;
import org.springframework.beans.factory.annotation.Autowired;

import java.util.Optional;

public class ItemRepositoryTest extends StudyApplicationTests {

    @Autowired
    private ItemRepository itemRepository;

    @Test
    public void create(){
        Item item = new Item();
        item.setName("노트북");
        item.setPrice(100000);
        item.setContent("삼성 노트북");

        Item newItem = itemRepository.save(item);
        Assert.assertNotNull(newItem);
    }

    @Test
    public void read(){
        Long id = 1L;

        Optional<Item> item = itemRepository.findById(id);

        Assert.assertTrue(item.isPresent());
    }
}



OrderDetailRepositoryTest.java

package com.example.study.repository;

import com.example.study.StudyApplicationTests;
import com.example.study.model.entity.OrderDetail;
import org.junit.Assert;
import org.junit.Test;
import org.springframework.beans.factory.annotation.Autowired;

public class OrderDetailRepositoryTest extends StudyApplicationTests {

    @Autowired
    private OrderDetailRepository orderDetailRepository;

    @Test
    public void create(){
        OrderDetail orderDetail = new OrderDetail();
/*
        orderDetail.setOrderAt(LocalDateTime.now());
        orderDetail.setUserId(1L);
        orderDetail.setItemId(1L);
*/
        OrderDetail newOrderDetail = orderDetailRepository.save(orderDetail);

        Assert.assertNotNull(newOrderDetail);
    }
}
